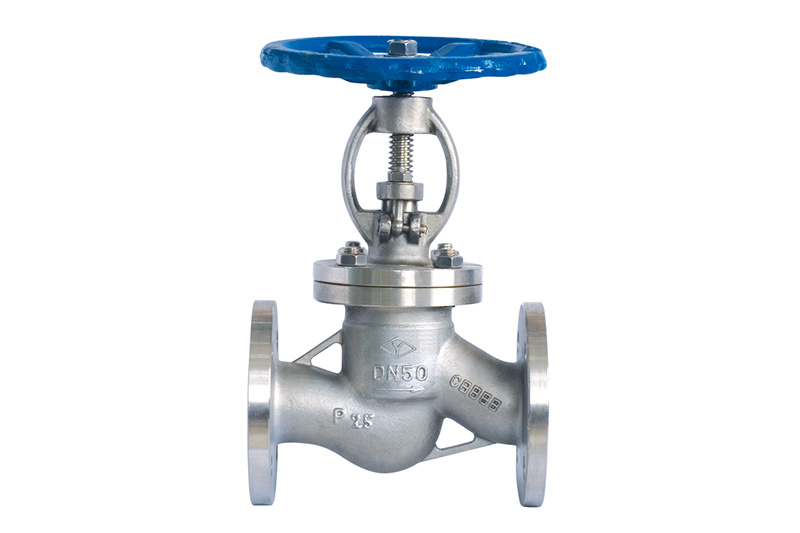

Stainless steel globe valves

Form factor and connection size

model	It is called the path		Size:
model	mm		L	D			D1		D2	D3	b-f	Z-Φd		H1	H2	D0
J41W-16P	15		130	95			65		45	–	16-2	4-Φ14		195	213	120
	20		150	105			75		58	–	18-2	4-Φ14		208	228	120
	25		160	115			85		68	–	18-2	4-Φ14		218	228	140
	32		180	140			100		78	–	18-2	4-Φ18		228	240	160
	40		200	150			110		88	–	18-2	4-Φ18		253	269	200
	50		230	165			125		102	–	18-2	4-Φ18		265	287	200
	65		290	185			145		122	–	18-2	8-Φ18		310	335	240
	80		310	200			160		138	–	20-2	8-Φ18		310	335	240
	100		350	220			180		158	–	20-2	8-Φ18		388	434	320
	125		400	250			210		188	–	22-2	8-Φ18		424	482	360
	150		480	280			240		212	–	22-2	8-Φ22		466	525	400
	200		600	340			295		268	–	24-2	12-Φ22		568	650	450
	250		650	406			355		320	–	30-2	12-Φ26		630	720	450

model	It is called the path		Size:
model	mm		L	D			D1		D2	D3	b-f	Z-Φd		H1	H2	D0
J41W-25P	15		130	95			65		45	–	16-2	4-Φ14		195	213	120
	20		150	105			75		58	–	18-2	4-Φ14		208	228	120
	25		160	115			85		68	–	18-2	4-Φ14		218	228	140
	32		180	140			100		78	–	18-2	4-Φ18		228	240	160
	40		200	150			110		88	–	18-2	4-Φ18		253	269	200
	50		230	165			125		102	–	20-2	4-Φ18		265	287	200
	65		290	185			145		122	–	22-2	8-Φ18		310	335	240
	80		310	200			160		138	–	24-2	8-Φ18		325	360	240
	100		350	235			190		162	–	24-2	8-Φ22		388	434	320
	125		400	270			220		188	–	26-2	8-Φ26		424	482	360
	150		480	300			250		218	–	28-2	8-Φ226		466	525	400
	200		600	360			310		278	–	30.2	12-Φ26		568	650	450
	250		650	425			370		335	–	36-2	12-Φ30		630	720	450

model	It is called the path		Size:
model	mm		L	D			D1		D2	D3	b-f	Z-Φd		H1	H2	D0
J41W-40P	15		130	95			65		45	40	14-2	4-Φ14		206	225	120
	20		150	105			75		58	51	16-2	4-Φ14		211	233	120
	25		160	115			85		68	58	16-2	4-Φ14		234	259	140
	32		180	140			100		78	66	18-2	4-Φ18		250	275	160
	40		200	150			110		84	76	18-4	4-Φ18		291	315	200
	50		230	165			125		99	88	20-4	4-Φ18		296	320	200
	65		290	185			145		118	110	22-4	8-Φ18		340	360	240
	80		310	200			160		132	121	24-4	8-Φ18		368	408	240
	100		350	235			190		156	150	24-4.5	8-Φ22		413	459	320
	125		400	270			220		184	176	26-4.5	8-Φ26		437	492	360
	150		480	300			250		211	204	28-4.5	8-Φ26		562	615	400
	200		600	375			320		284	260	34-4.5	12-Φ30		614	695	450

Main parts materials

Part name	Materials
Valve body	CF8
Valve plate	F304
stem	F304
Valve cover	CF8
Handwheel	QT450-10

Usage: This valve is suitable for opening and closing nitric acid pipelines.

Performance specifications

model	Nominal Pressure (MPa)	Test pressure (MPa)		Applicable temperature (°C)	Applicable media
		Strength (water)	Sealing (water)
J41W-16P	1.6	2.4	1.8	-29~150℃	water, steam, oil and nitric acid corrosive liquids
J41W-25P	2.5	3.8	2.8	-29~150℃	water, steam, oil and nitric acid corrosive liquids
J41W-40P	4.0	6.15	4.51	-29~425℃	water, steam, oil and nitric acid corrosive liquids
