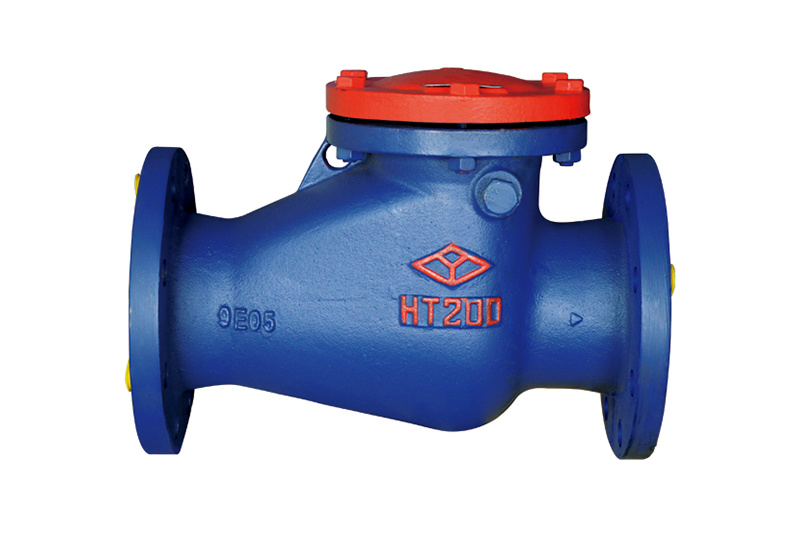

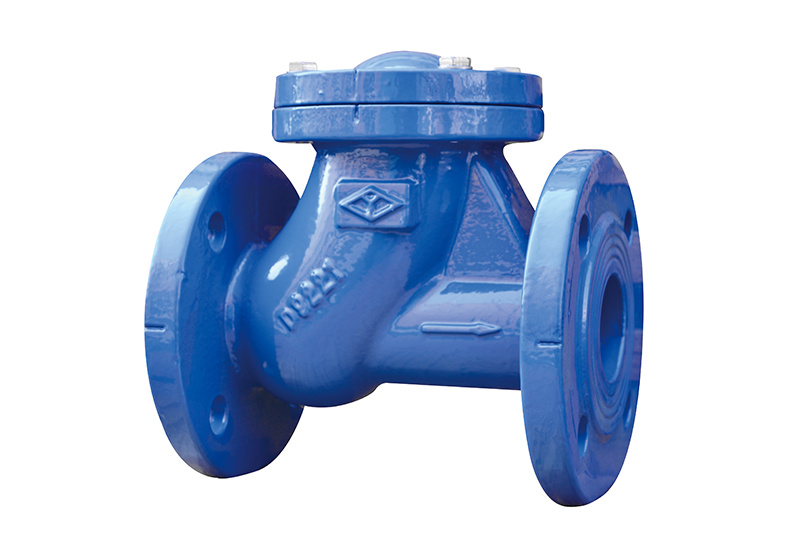

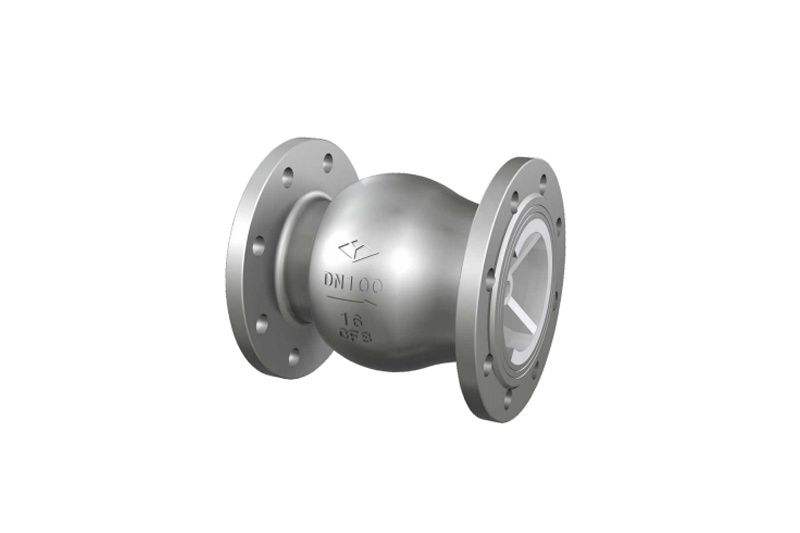

Orbital spherical check valve HQ41X
Form factor and connection size
| model | The public is called the culvert | Size: | ||||||
| mm | L | D | D1 | D2 | b-f | Z-middle d | H | |
| HQ41X-16Q | 40 | 203 | 150 | 110 | 84 | 19-3 | 4φ19 | 129 |
| 50 | 203 | 165 | 125 | 99 | 19-3 | 4φ19 | 129 | |
| 65 | 216 | 185 | 145 | 118 | 19-3 | 4φ19 | 146 | |
| 80 | 241 | 200 | 160 | 132 | 20-3 | 8-φ19 | 152 | |
| 100 | 292 | 220 | 180 | 156 | 22-3 | 8-φ19 | 189 | |
| 125 | 330 | 250 | 210 | 184 | 23-3 | 8-φ19 | 190 | |
| 150 | 356 | 285 | 240 | 211 | 23-3 | 8-23 | 225 | |
| 200 | 495 | 340 | 295 | 265 | 25-3 | 12-23 | 275 | |
Main parts materials
| Part name | Materials |
| Valve body | Ductile iron |
| Valve cover | Ductile iron |
| sphere | Mild steel + sand + rubber |
Usage: This valve is used to prevent the reverse flow of pipeline medium in one direction.
Performance specifications
| model | Nominal Pressure (MPa) | Test pressure (MPa) | Applicable temperature (°C) | Applicable media | |
|---|---|---|---|---|---|
| Strength (water) | Sealing (water) | ||||
| HQ41X-16Q | 1.6 | 2.4 | 1.76 | ≤80℃ | Water |
