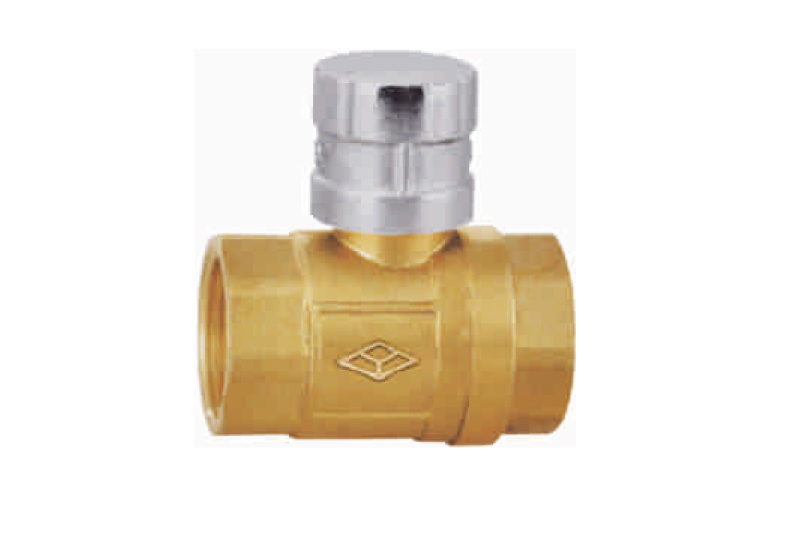

Forged Brass Magnetic Ball Lock Valve Q11F-16T
Shape and connection size
| DN | SIZE | L | B | H |
| 15 | 1/2″ | 52 | 10 | 50 |
| 20 | 3/4″ | 56.9 | 14.5 | 53.5 |
| 25 | 1″ | 67 | 20 | 58 |
| 32 | 11/4″ | 77 | 25 | 62 |
| 40 | 11/2″ | 88 | 32 | 66.5 |
| 50 | 2″ | – | – | – |
| Nominal pressure | 1.6MPa |
| Working medium | Hot and cold water, gas, oil, etc |
| Operating temperature | -10°C≤t≤120℃ |
Usage: This series of valves is suitable for opening and closing pipelines where the working medium is water, non-corrosive liquid, air, saturated steam, etc.
